For 2003-2007 5.9L Dodge Ram Cummins Diesel Engines Coolant Bypass Kit

SKU SG-ER-0077
Original price $96.59 - Original price $96.59
Original price
$96.59
$96.59 - $96.59
Current price $96.59
Availability:
in stock, ready to be shipped
  • 100% quality assurance tested, more responsive, less expensive, easier to install.
  • Material: made of high quality Aluminum, Metal & Polyester.
  • Lower coolant temperature at the rear cylinders.
  • Ensure consistent temperatures across all cylinders.
  • Prevent damaging coolant pressure build up.

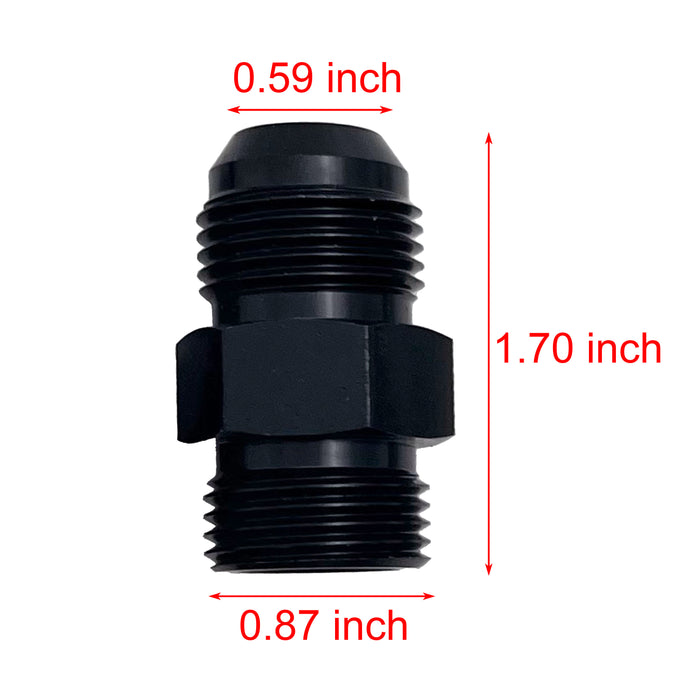

  • Come with braided hose and AN O-ring fittings to ensure a leak-free installation.
  • The rear cylinders on the 6.7L Cummins suffer from a lack of coolant flow, and therefore, experience the highest coolant temperatures.
  • The Coolant Bypass is one of the most important additions you make to improve the reliability and longevity of the Cummins platform.
Specifications-Expand to view details

-Fitment:
2003 Dodge Ram 2500/3500 5.9L 24V Cummins;
2004 Dodge Ram 2500/3500 5.9L 24V Cummins;
2004.5 Dodge Ram 2500/3500 5.9L 24V Cummins;
2005 Dodge Ram 2500/3500 5.9L 24V Cummins;
2006 Dodge Ram 2500/3500 5.9L 24V Cummins;
2007 Dodge Ram 2500/3500 5.9L 24V Cummins;

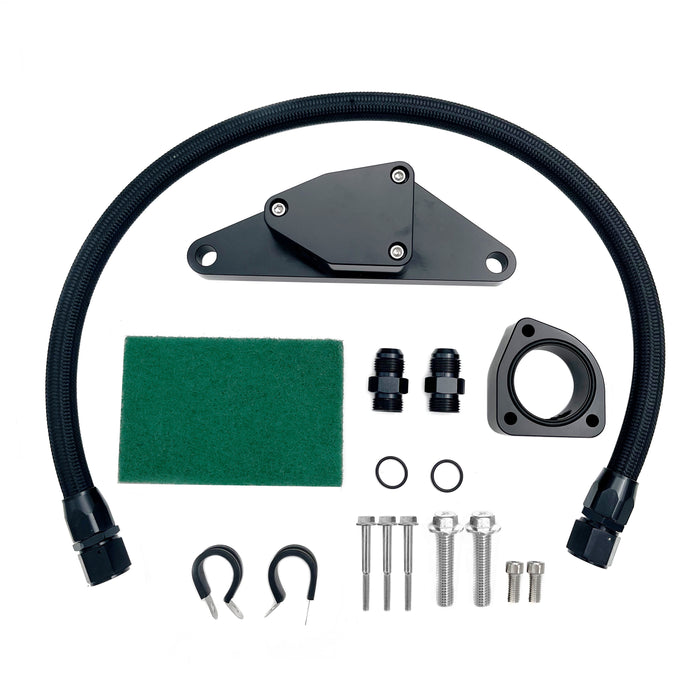

-Package Included:

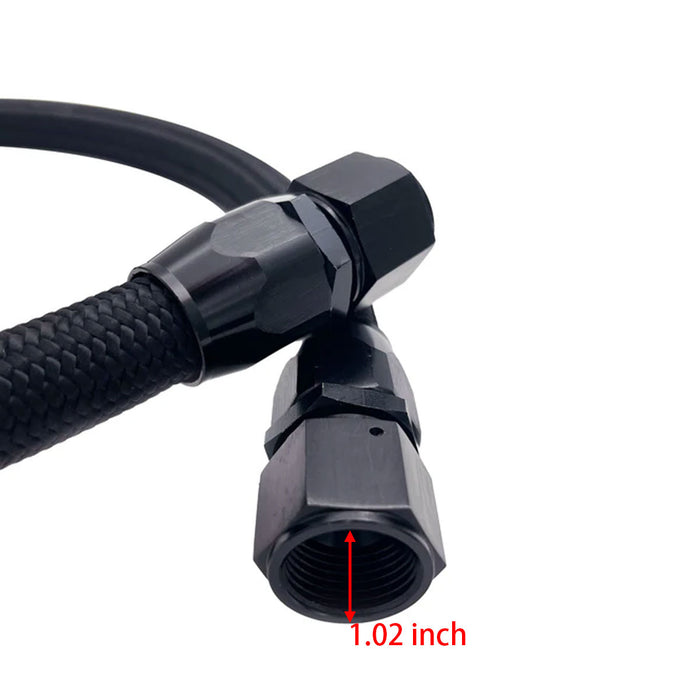

1xCoolant BypassHose;

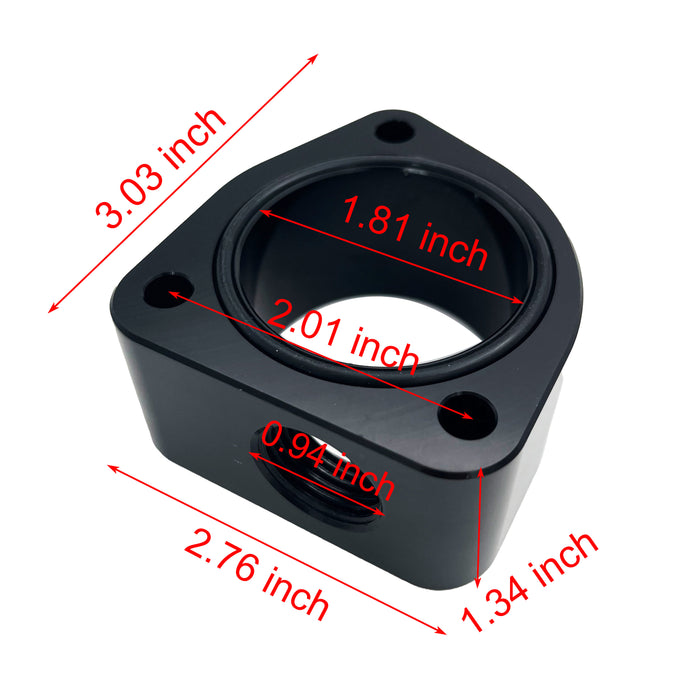

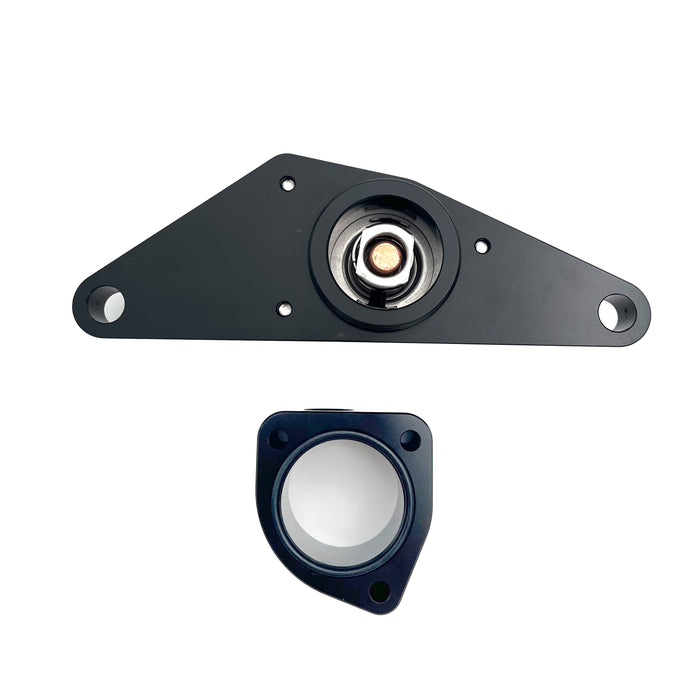

1xCoolant Bypass Thermostat Housing and O-ring;

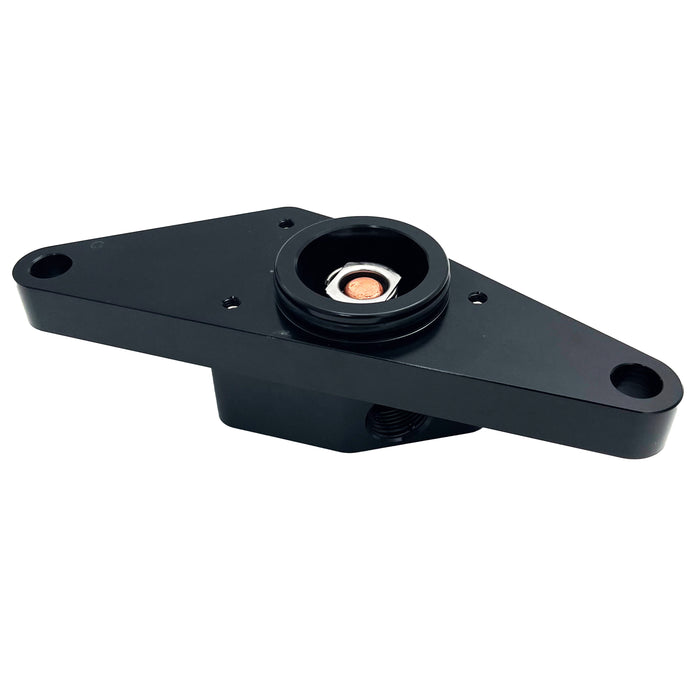

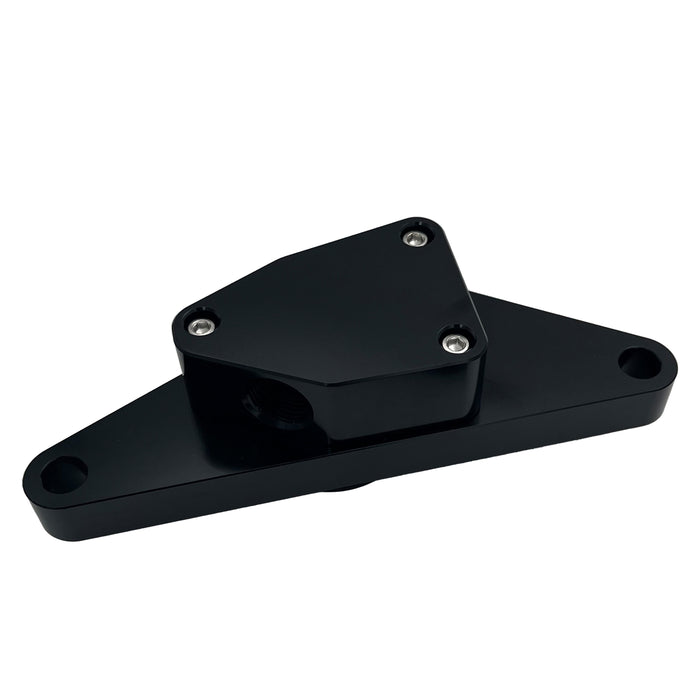

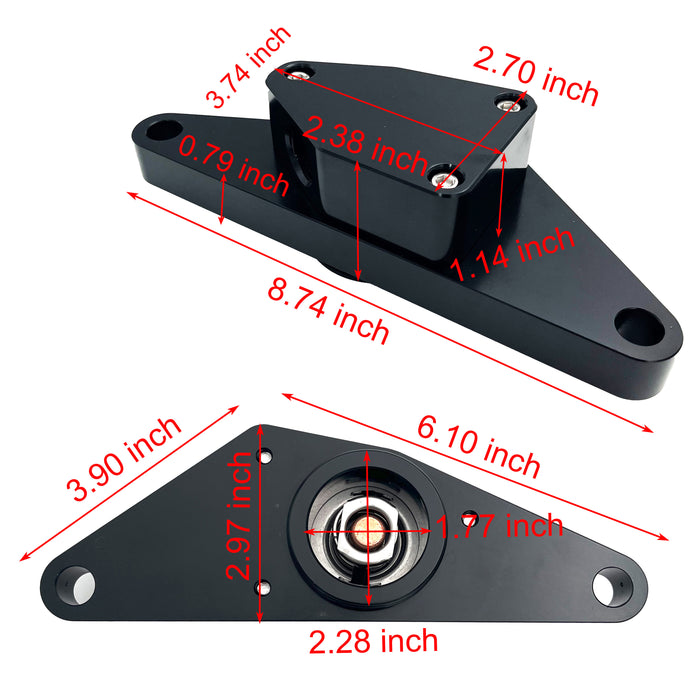

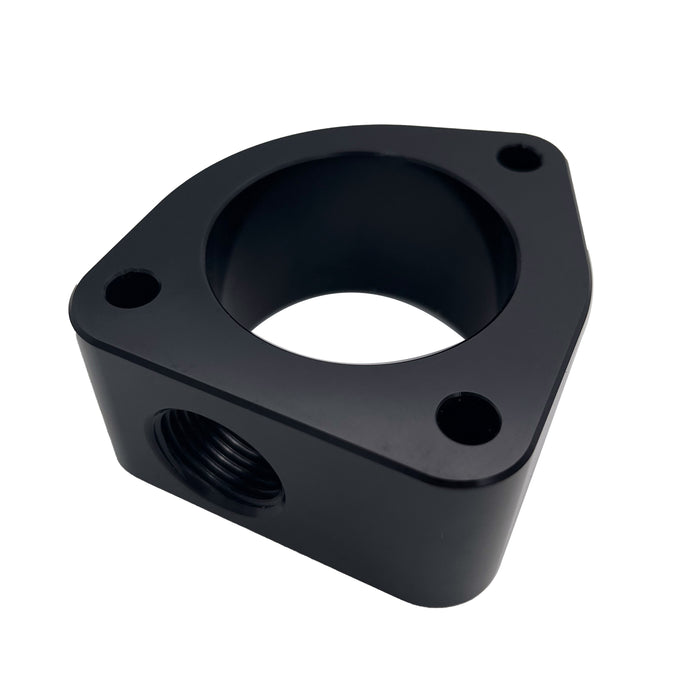

1xThermostat Riser Block and O-ring;

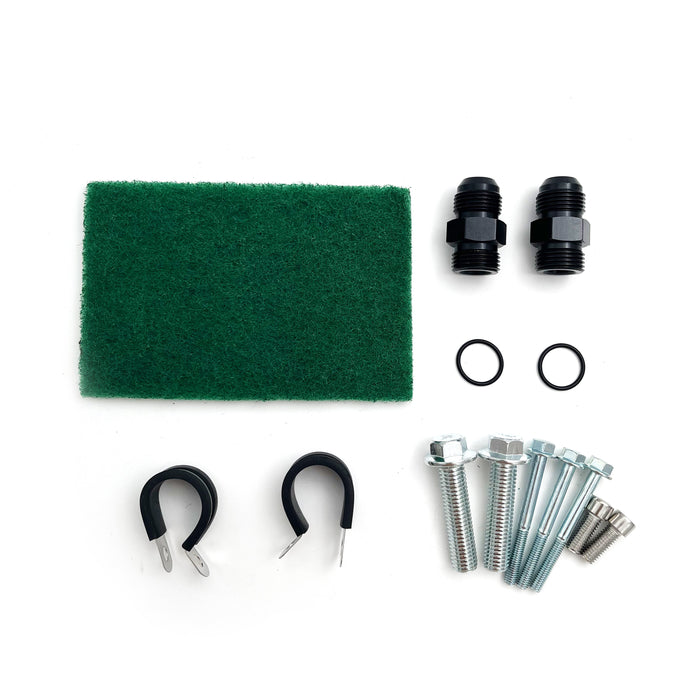

2xCoolant Bypass Hose Fixing Bracket;
2x (M8x1.25, 20mm) Socket Head Cap Screw;
3x (M6x1.00,60mm) Flange Head Bolt;
2x (M12x1.75, 40mm) Flange Head Bolt;
1x Scouring Pad.(100% Brand New Never Used Or Installed)

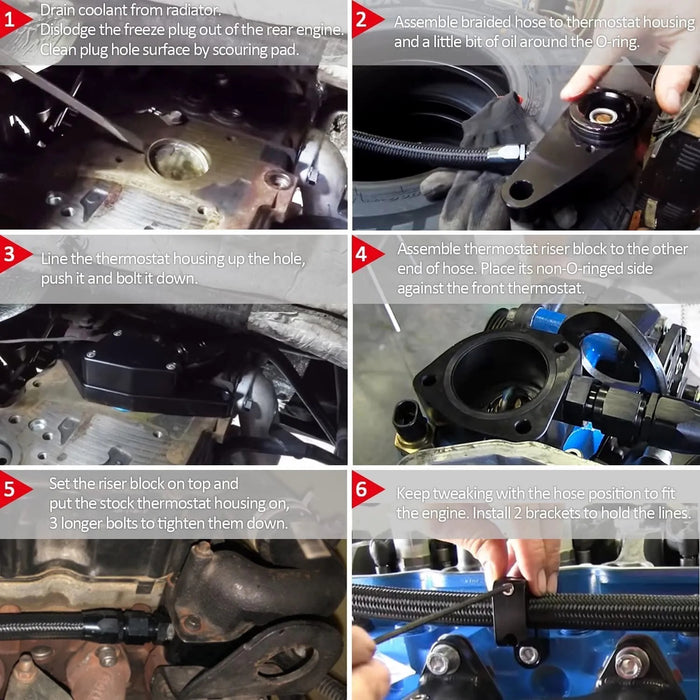

-Installation Steps:
1. Drain coolant from radiator. Dislodge the freeze plug out of the rear engine.Clean plug hole surface by scouring pad.
2. Assemble braided hose to thermostat housing. Lightly oil O-ring.Line up housing to rear hole, push it and bolt it down.
3. Assemble thermostat riser block to the other end of hose with wrench.Put non-O-ringed side of block against the front thermostat.
4. Set stock thermostat on top, 3 bolt to hold them on.
5. Adjust the hose position to fit engine.
6. Install 2 hose fixing brackets or clamps to hold hoseWhy Need a Coolant Bypass
